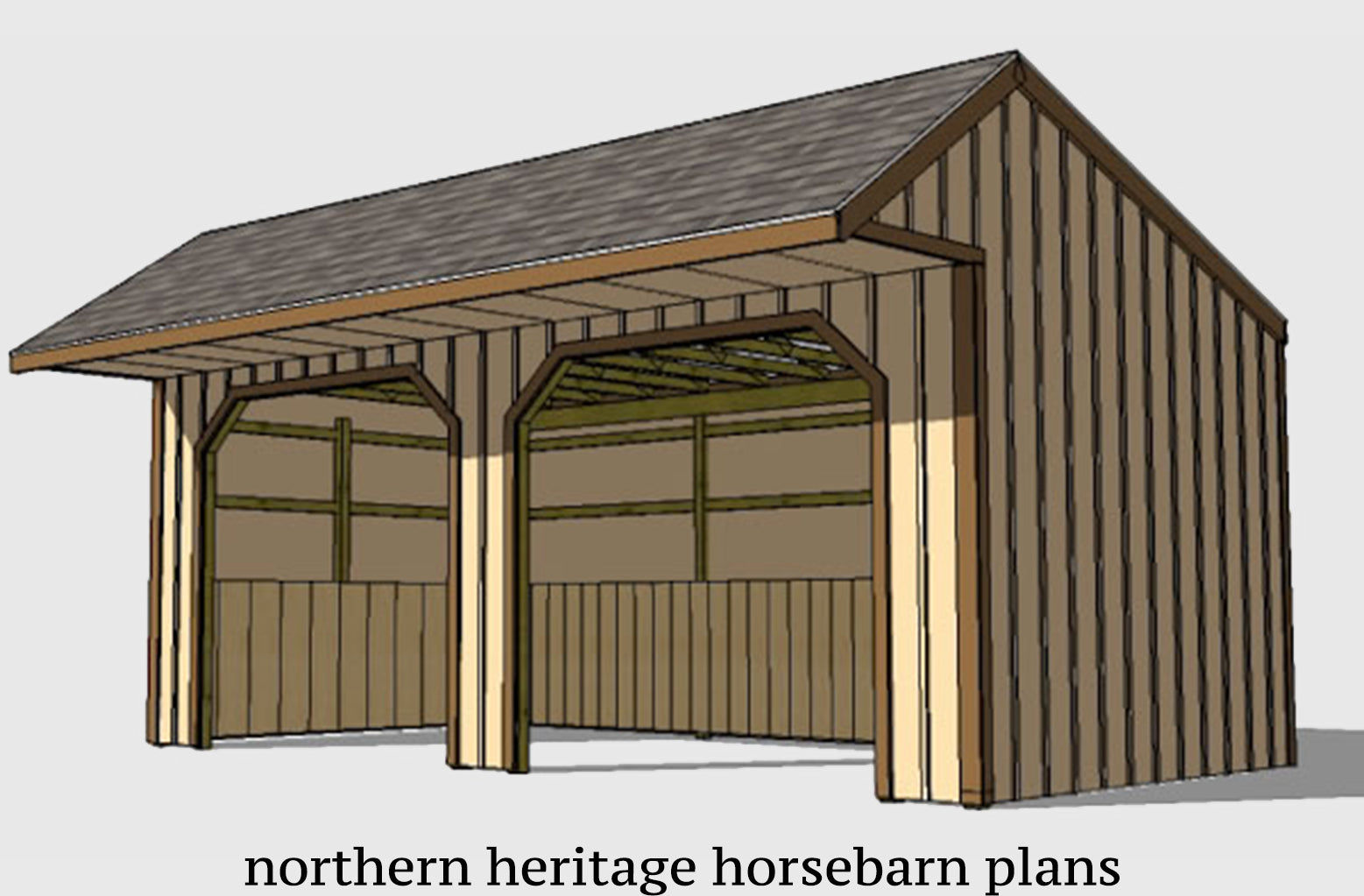

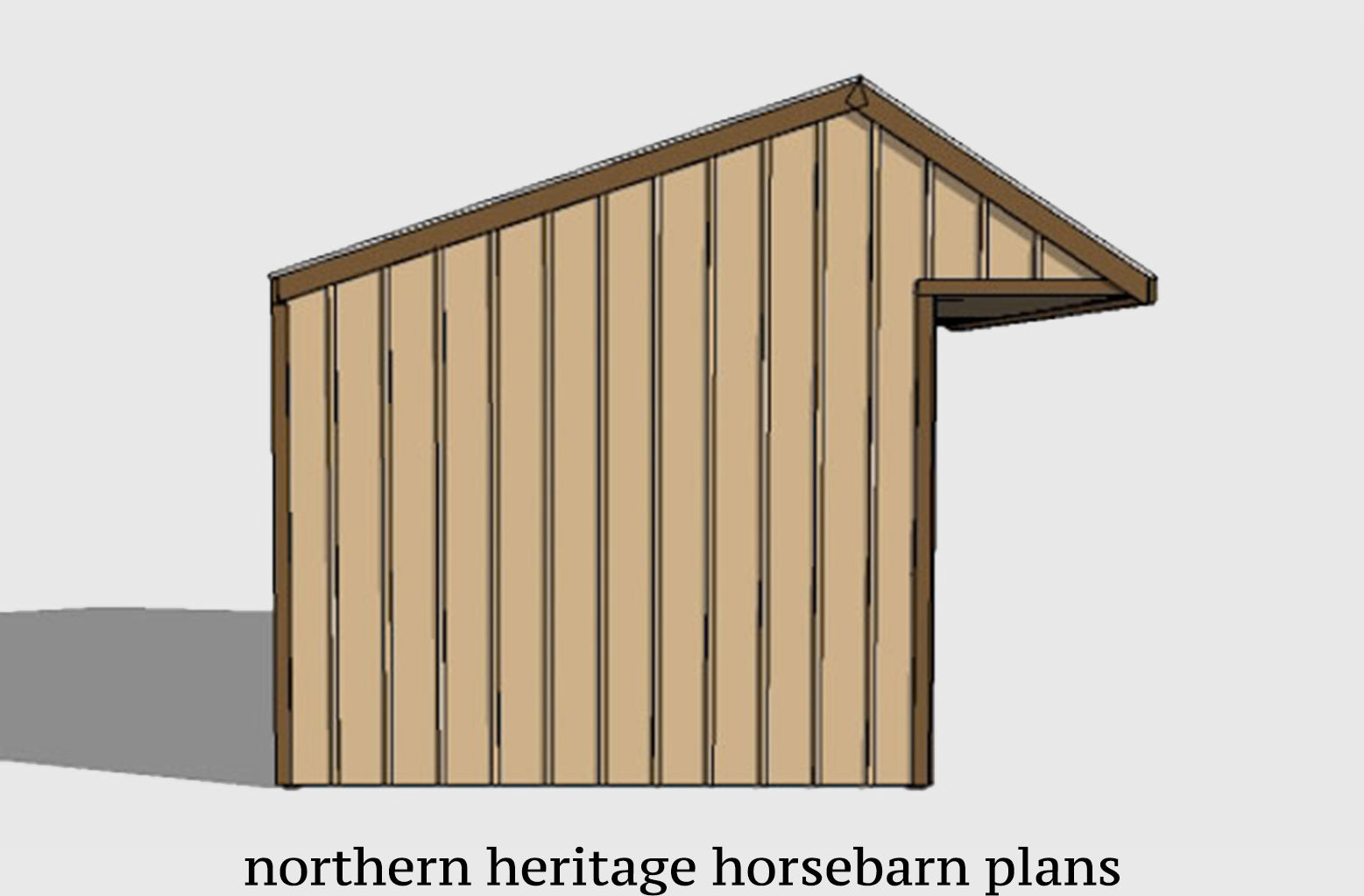

12x24 Run in/loafing Horse Barn Plan

$40.99
SKU: nhhb12x24-RIC

12x24 Run in/loafing Horse Barn Plans Include:

Post and Beam Construction - Plans include common post and beam construction

Oak Kick boards and Siding - Choice of 3/4" plywood,1x8 oak boards, or 2x6 pineboards

Door Plans - No door is included

Foundation - Built on 6x6 wood skids. Allows the barn to be moved. Build-able on the direct ground or prepared gravel area.

Floor - Optional existing ground or poured concrete slab

Wall Framing - Posts are 4x4

Wall Height - 9'3" Front and Rear

Window - None included. Easily added to any wall if desired

Siding - Battens are 1x2, and 4x8 plywood

Roof - Template included. Framed using 2x4's for the rafters and sheeted with 1/2" OSB

Roof Pitch and Overhang- Front - 8/12 pitch, 4/12 over stall.  2" overhang on sides, 2" on rear and 6" on the front.

Roofing Materials - Corrugated metal roofing or asphalt shingles

Trim - Roof Eves and Facia are 1x4 and 1x6

Engineering - All design loads are drawn "typical". Specific modifications for local wind, soil conditions etc are made through a local engineer. Often required by the building dept.

FREE How to book - Helpful instructions specific to Barn Building

FREE Materials List - Use this materials list to get cost estimates on building your barn

Instant Download Now Option - Select Option at Checkout
